Silver Nanowire Membranes A20

$290.00$890.00

Total

Catalog Number: NovaWire-Ag-MEM-A20

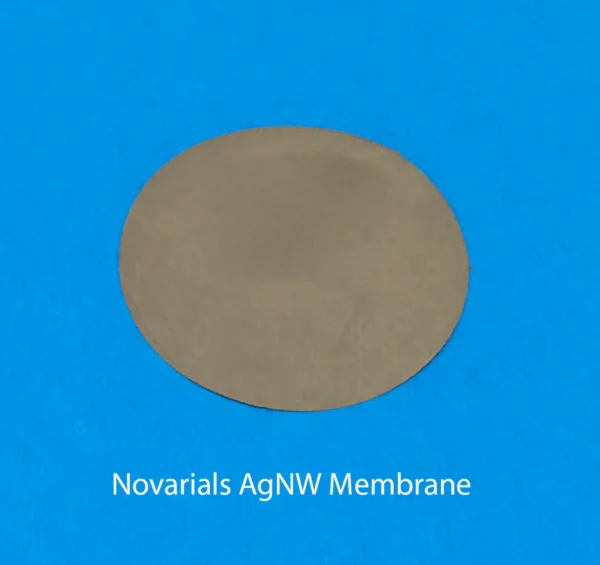

The silver nanowire membranes are made of pure silver nanowires with a diameter of 20nm. They have a disk shape with a diameter of 25mm and a thickness 20 micron. Other sizes and thicknesses can be custom-synthesized, too.

These silver nanowire membranes can be used in a variety of filtration application due to their high chemical and high temperature stability. They also allow the trapping of nanoparticles and biomaterials including viruses. The high electrical conductivity of these membranes may also allow the direct SEM observation of biospecies without metal coating, which not only simplifies the SEM observation process, but also eliminates the artifacts caused by metal coating during the SEM observation.

APPLICATIONS

  • Filtration and separation
  • Porous and conductive substrate for biospecies
  • Virus removal
  • SEM sample holder for biospecies due to its conductivity
  • Embedded conductive network for various sensors such as pressure sensors, strain sensors, and twisting sensors
  • Artificial skin fabrication
  • Superior EMI shielding

SYNONYM

Silver nanowire membranes, silver nanofiber membranes, silver, Ag nanowire membranes, Ag nanofiber membranes, Ag, metallic nanowire membranes, metallic nanofiber membranes, conductive nanowire membranes, conductive nanofiber membranes, silver nanowire membrane, silver nanofiber membrane, Ag nanowire membrane, Ag nanofiber membrane, metallic nanowire membrane, metallic nanofiber membrane, conductive nanowire membrane, conductive nanofiber membrane.

Disk diameter

25mm

Sheet number

3, 10
